Permanently attaches to the face of a dock for ideal operation

• The Edge-O-Dock leveler permanently attaches to face of dock
• It is recommended for docks to be at least forty-eight (48) inches high
• When the trailer departs, the lip drops automatically behind the face of the bumpers
• Concrete recess is not required
• It comes complete with 2" x 8" x 18" bumpers and installation instructions
• Standard ramping is twenty-nine (29) inches, Models FM/PP/PE 3066 and 3072 are (29-13/16) inches with a (36-5/8") inch long ramping length available for smaller grade
• Each unit provides a service range of five (5) inch above dock and five (5) inch below dock height
• A steel dock edge, or approach ramp is required for proper installation

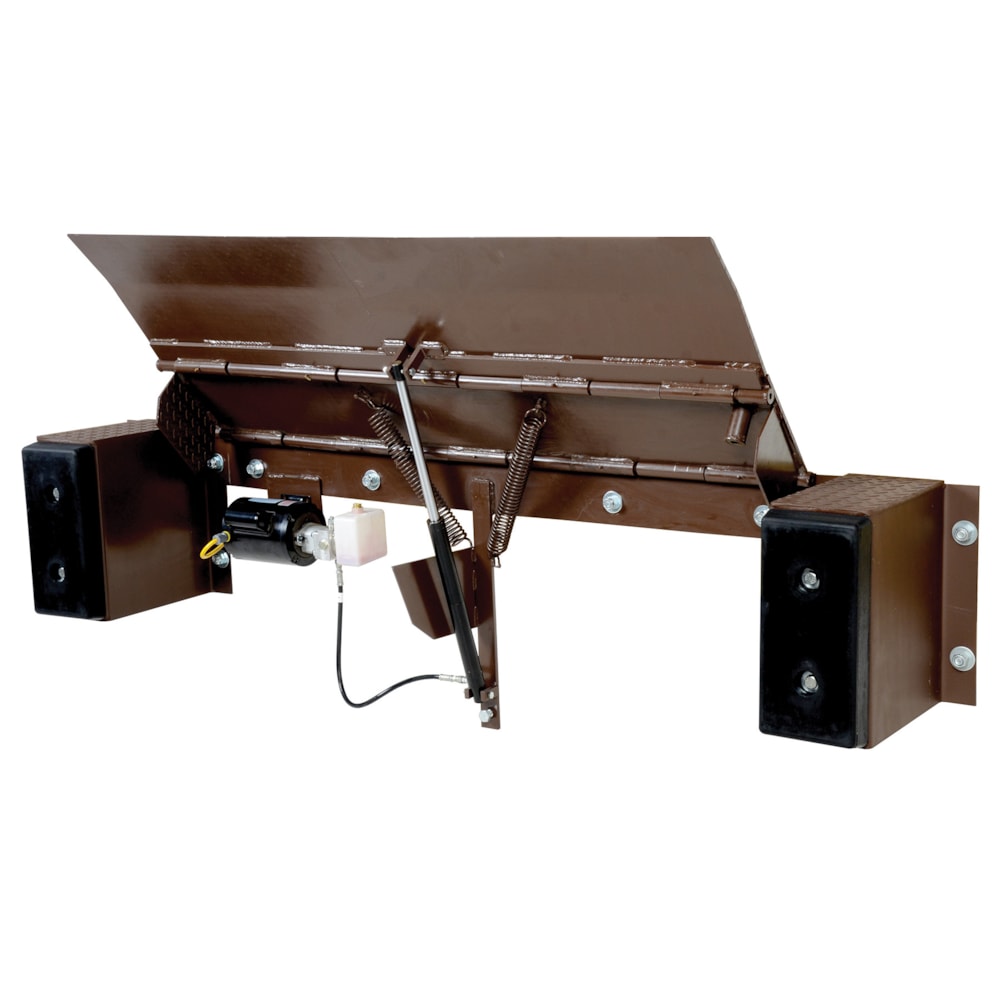

• The Electric Hydraulic Edge-O-Dock is the easiest to operate
• After the truck is backed against the dock, push and hold the control button
• The leveler raises and the lip will extend. 115V, 1 phase power standard
• Unit comes complete with motor, pump, control box, cylinder, lines and oil
• Truck must pull out for leveler to return to stored position
