Vestil

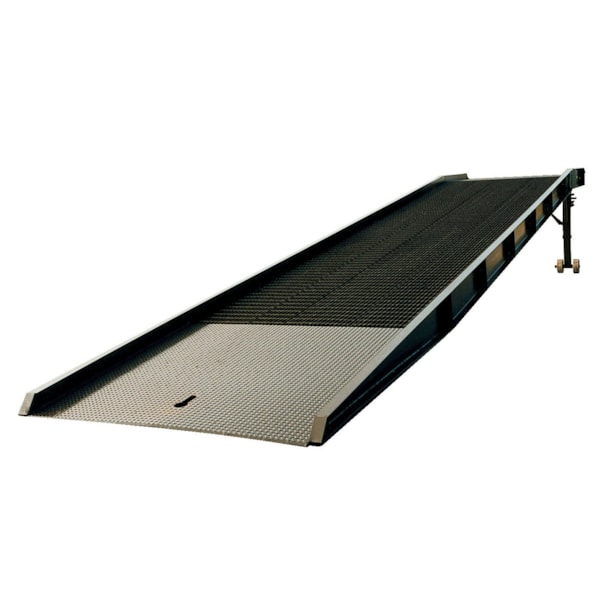

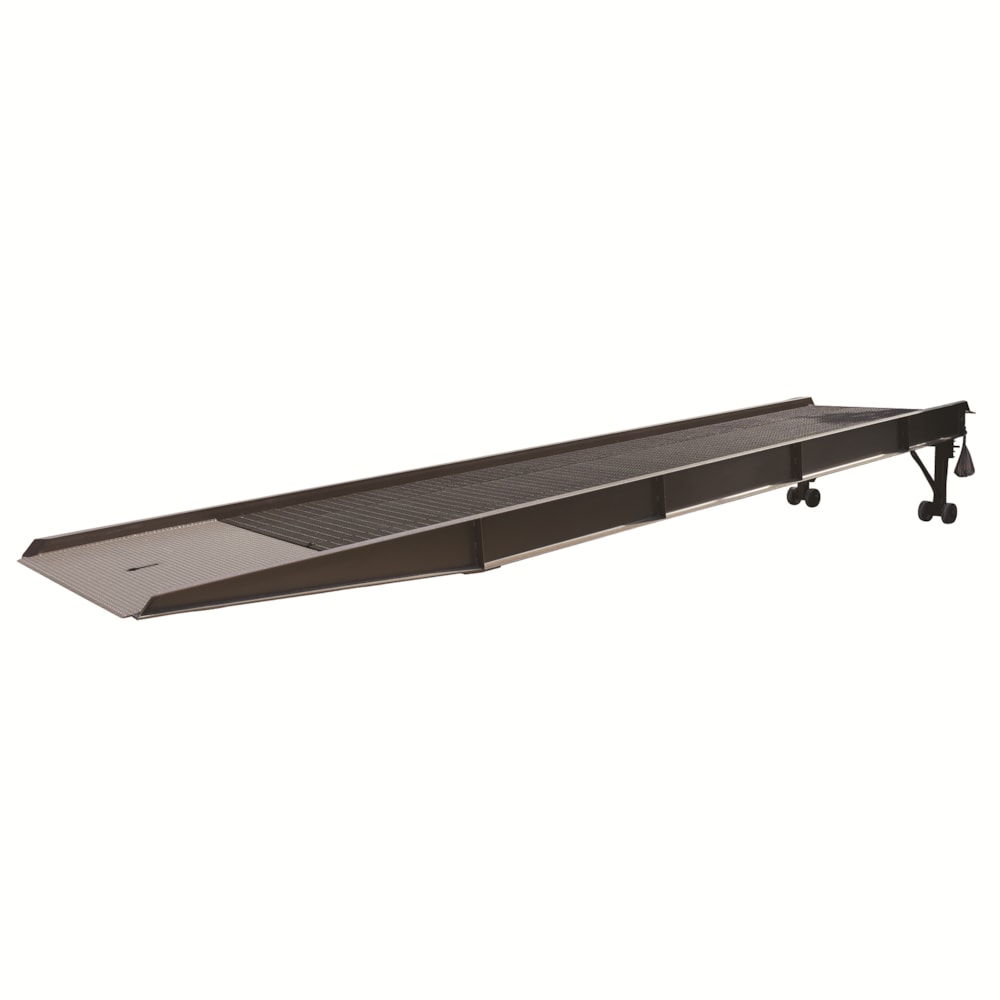

72" x 36" Steel Yard Ramp Overlap Style, 16,000 lb. Capacity

Item # 102085
MFR # YR-16-7236
UNSPSC 24100000
72" x 36" Steel Yard Ramp Overlap Style, 16,000 lb. Capacity
72" x 36" Steel Yard Ramp Overlap Style, 16,000 lb. Capacity
Price:$22,007.64
/ Each
Available
QuantityPrice
Each$22,007.64

Length72"
MaterialSteel
StyleOverlap
TypeYard
Width36"

Loads and unloads from ground level when no dock exists

  • Steel side curbs prevent fork truck run-off
  • Overlap style lip with safety chains secures ramp to trailer
  • Open grating design allows snow, ice and rain to fall through
  • Manual two-speed crank easily adjusts to different dock heights
  • Uniform Capacity: 16,000 lb.
  • Usable Ramp Width: 66"
  • Lowered Height: 45"
  • Raised Height: 62"
