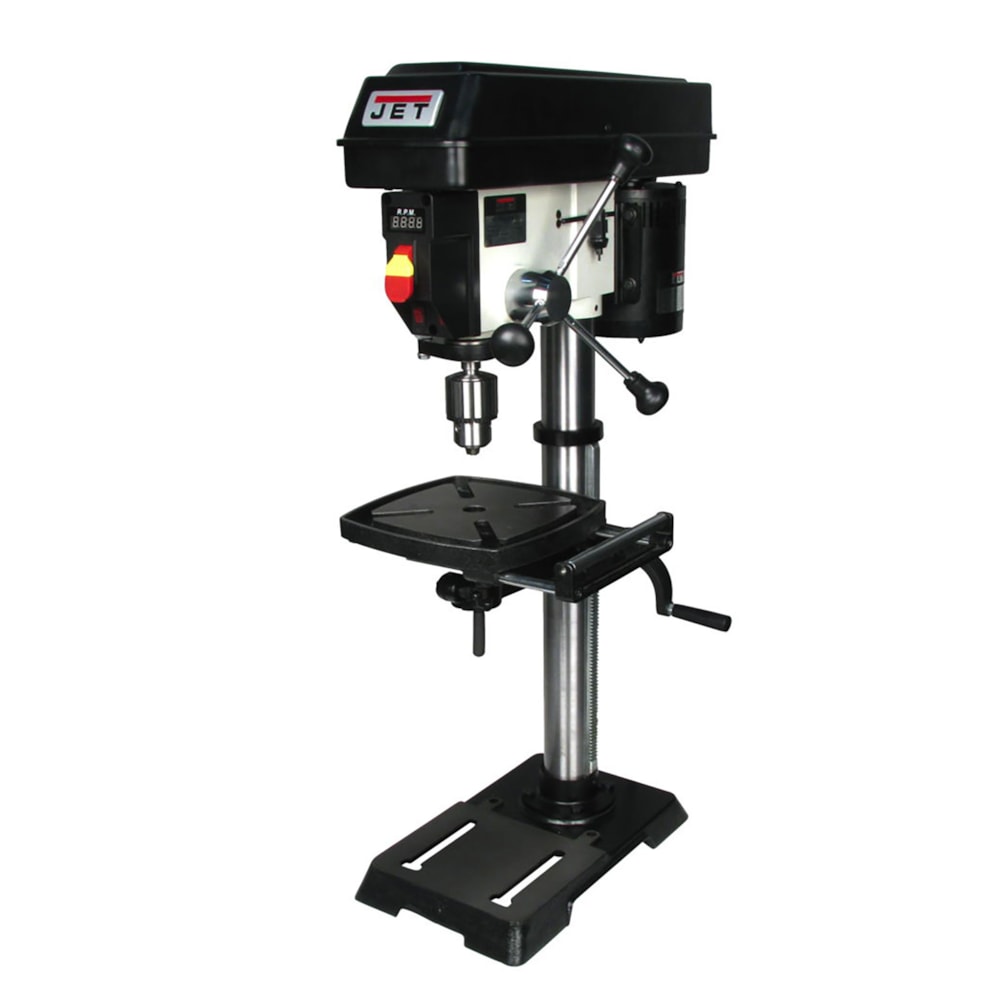

Powerful enough to tackle the big jobs

• Compact bench top design allows easy transport
• 10" x 16 1/8" cast iron base fits neatly on work benches with limited space
• Stable base design allows easy re-positioning on work bench
• Heavy-duty 1/2 HP induction motor for various drilling applications
• Mechanical variable speed drive system for easy speed changes
• Industrial 5/8" drill chuck for multiple drilling applications
• Oversized, ergonomic knobs provide ease of use and maximum control
• X-shaped XACTA Laser™ ensures drilling accuracy
• Digital read out displays spindle speed for different drilling applications
• LED work light increases visibility for intricate applications
• Retractable roller extension provides support and quick work-piece adjustment
• Large paddle switch offers easy shut off and lockout protection
• Clear linear scale with depth stop for consistent drilling depths
• 5 year limited manufacturer warranty
• Manufacturer model# 716000
• Swing: 12"
• Spindle Travel: 3-1/8"
• Number of Spindle Speeds: Variable
• Spindle Taper: MT-2
• Spindle Speed Range: 530 - 3100 RPM
• Spindle Distance to Table: 17" max
• Spindle Distance to Base: 23 3/8"
• Table Size: 9 1/2"L x 9 1/2"W
• Table Size Fully Extended: 9 1/2"L x 16 1/2"W
• Table Tilt: -45° to 45°
• Chuck Size: 5/8"
• Column Diameter: 2-1/2"
• Base Size: 10" x 16-1/8"
• Motor Power: 1/2 HP
• Motor Phase: 1
• Motor Voltage: 115V
• Motor Amps: 5 Amps
• Weight: 85 lb.
