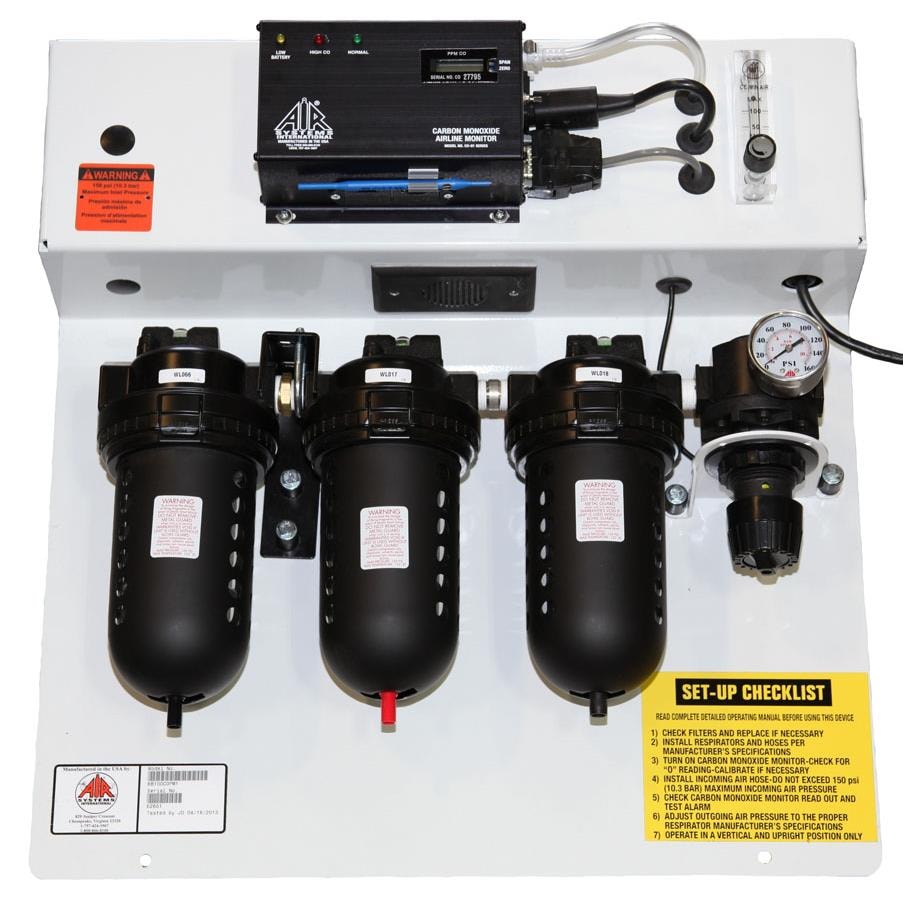

High Performance Grade-D Breathing Air Filtration System

• 100 CFM Filtration
• 123 CFM Flow Capacity
• 3 Stage, Grade-D Filtration
• Filter Change Indicators on All Filters
• 1/2" Hansen 5000 Series Plug Inlet, Maximum Inlet Pressure 150 PSI
• (2) Automatic Drains w/Discharge Tubes, (1) Manual Drain
• 115 VAC, 9-12 VDC, 60 Hz
• CO Monitor Installed, Set at 10 PPM per OSHA (5 PPM for Canada)
• 4-Outlet Solid Aluminum Block Manifold (Specify 1/4" Hansen or 1/4" Schrader Style)
• External Warning Lights & Alarm
• Pressure Regulator
• Safety Relief Valve Set @ 125 PSI
• Visual Air Flowmeter to Monitor
• Mounted on Powder Coated White Steel Panel
• Replacement Filter Kit: BB100-FK
• Monitor To Be Calibrated Once a Month, Calibration Kit: BBK-20 or BBK-20103 (BBK-10 or BBK-10103 for Canada)
• Remote Alarm Options: ALMSTH120, EXAL, and EXVST
