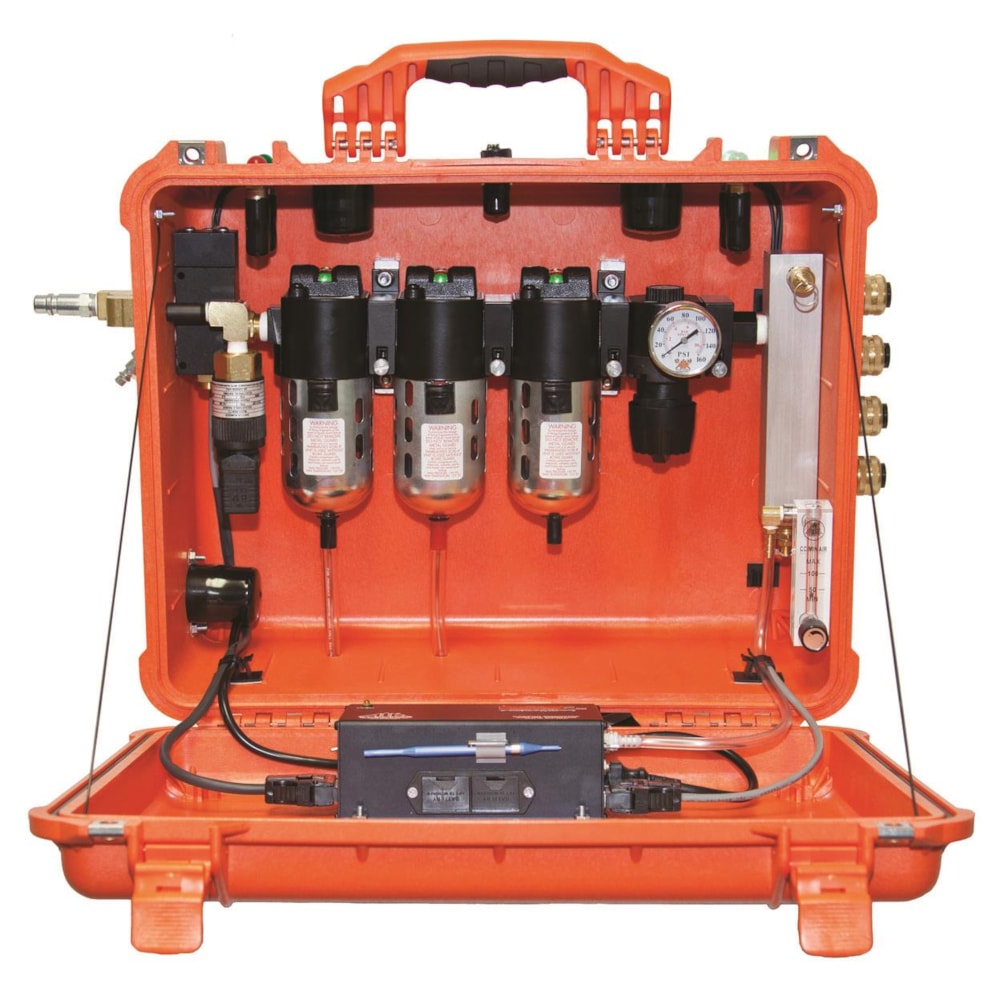

High Performance Auto-Air™ Grade-D Breathing Air Filtration System

• 50 CFM Filtration
• 79 CFM Flow Capacity
• 3 Stage, Grade-D Filtration
• Filter Change Indicators on All Filters
• 1/2" Hansen 5000 Series Plug Primary Inlet
• 1/4" Hansen 3000 Series Plug Secondary Inlet
• Maximum Inlet Pressure 150 PSI
• Back-Up Operation Conditions:
• 1. Power Loss
• 2. CO Alarm
• 3. Pressure Drops below 60 PSI
• (2) Automatic Drains w/Discharge Tubes, (1) Manual Drain
• 115 VAC, 9-12 VDC, 60 Hz
• CO Monitor Installed, Set at 10 PPM per OSHA (5 PPM for Canada)
• 4-Outlet Solid Aluminum Block Manifold (Specify 1/4" Hansen or 1/4" Schrader Style)
• External Warning Lights & Alarm
• Pressure Regulator
• Safety Relief Valve Set @ 125 PSI
• Visual Air Flowmeter to Monitor
• Pelican™ Case Mounted
• Replacement Filter Kit: BB50-FK
• Monitor To Be Calibrated Once a Month, Calibration Kit: BBK-20 or BBK-20103 (BBK-10 or BBK-10103 for Canada)
• Remote Alarm Options: 50-ALMAA, 50-ALMSTAA, & 50-ALMP
