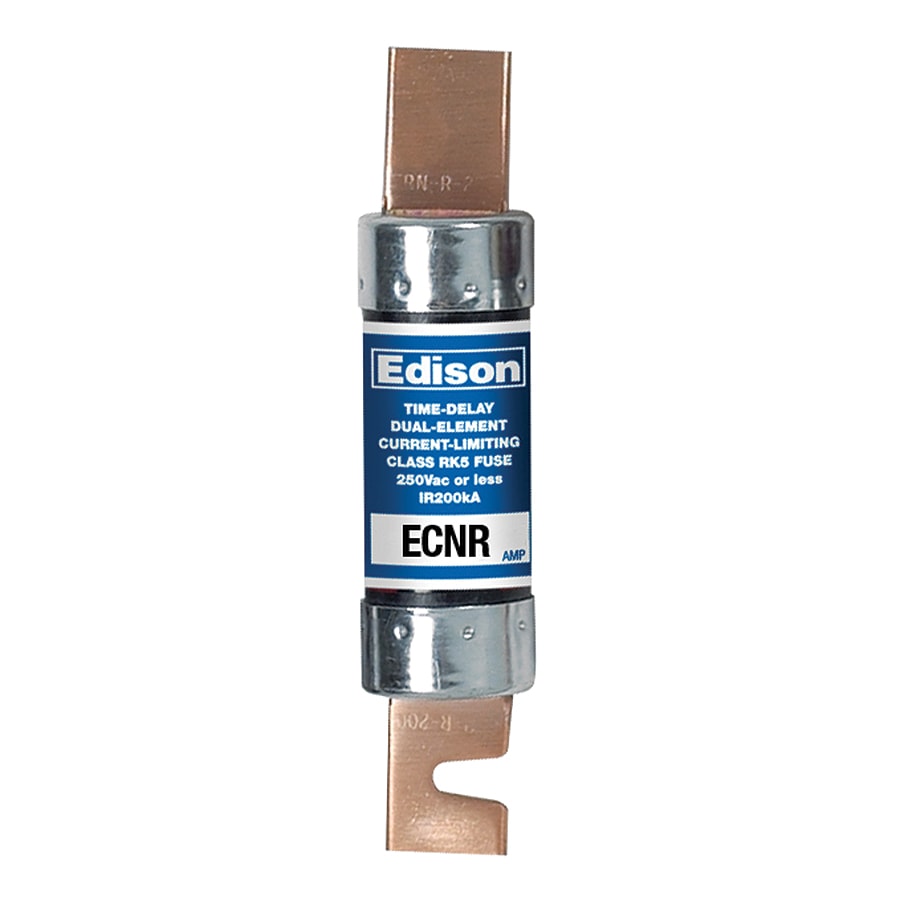

Helps protect motors against burnout from overloads

• Provides motor overload, ground fault, and short-circuit protection
• Helps protect motors against burnout from overloads and single-phasing on 3-phase systems when sized properly
• Simplifies and improves blackout prevention (selective coordination)
• Dual-element fuses can be applied in circuits subject to temporary motor overloads and surge currents to provide both high performance short-circuit and overload protection
• Overload element provides protection against low level overcurrent of overloads and will hold on inrush current which is five times greater than the amp rating of the fuse for a minimum of ten seconds
• Dual-Element, Time-Delay – 8 seconds (minimum) at 500% rated current
• Current-Limiting Volts: 250Vac (or less), 125Vdc (or less)
• IR: 200kA RMS Sym
• Agency Information: CE, UL Listed, Std. 248-12, Class RK-5, Guide JDDZ, File E162363, CSA Certified, C22.2 No. 248.12, Class 1422-02, File 700489
• Functional equivalent to Cooper Bussmann FRN-R
