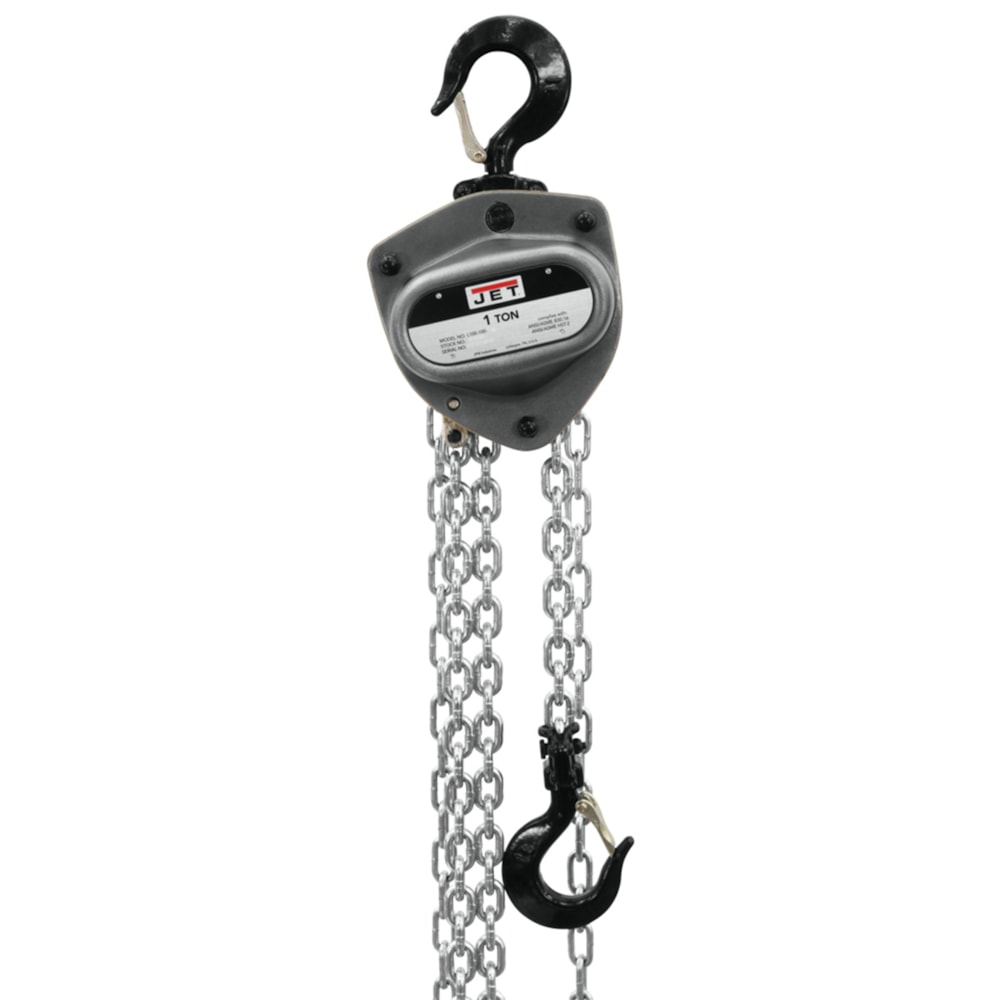

JET® Offers A Full Range of Tools And Machinery That Meet Your Highest Standards

• Slip clutch style overload protection that prevents lifting or pulling damaging loads beyond the rated capacity of the hoist and when triggered, the overload protection can be reset on site
• Weston style double ratchet pawl brake design splits the load to opposite sides of the ratchet gear for greater load security
• Industrial rated alloy steel hooks rotate 360 degrees for easy rigging and slowly stretch to indicate an overload situation
• Durability
• Grade 100, corrosive resistant plated load chain is a smaller, more compact link that is 20% stronger than grade 80 load chain
• Secured with Allen screws and lock nuts, the cast steel safety latches are more durable than stamped steel latches and will not bend out of compliance with lifting regulations
• Intended for the harshest environments, the heat treated load plates and case hardened corrosive resistant internal parts extend the life of the hoist
• Double sealed ball bearings support the load sheave to increase efficiency and promote smooth operation
• Impact resistant all steel construction for added durability and protection
• The lightweight design and smaller body are ideal for confined areas and low headroom applications
• Load tested to 125% of capacity with certificate
• All steel construction with a durable powder coat finish
• Triple-spur gears provide high efficiency with minimum effort
• Smooth rolled edge on-hand chain cover prevents side pull jamming
• Dropped forged alloy steel safety hooks feature wide throats for ease of rigging
• Patented fused disc brakes offer longer life and ease of replacement
• Sealed ball-bearing supported load sheave
• Models with slip clutch overload protection available
• Drive pinion supported on both ends with sealed ball bearings
• Cast safety latch
• 11-5/8 in headroom
• 43 ft hand chain overhaul to lift load 1 ft
• 1 number of falls
• 6.3 x 19 mm load chain dimensions
