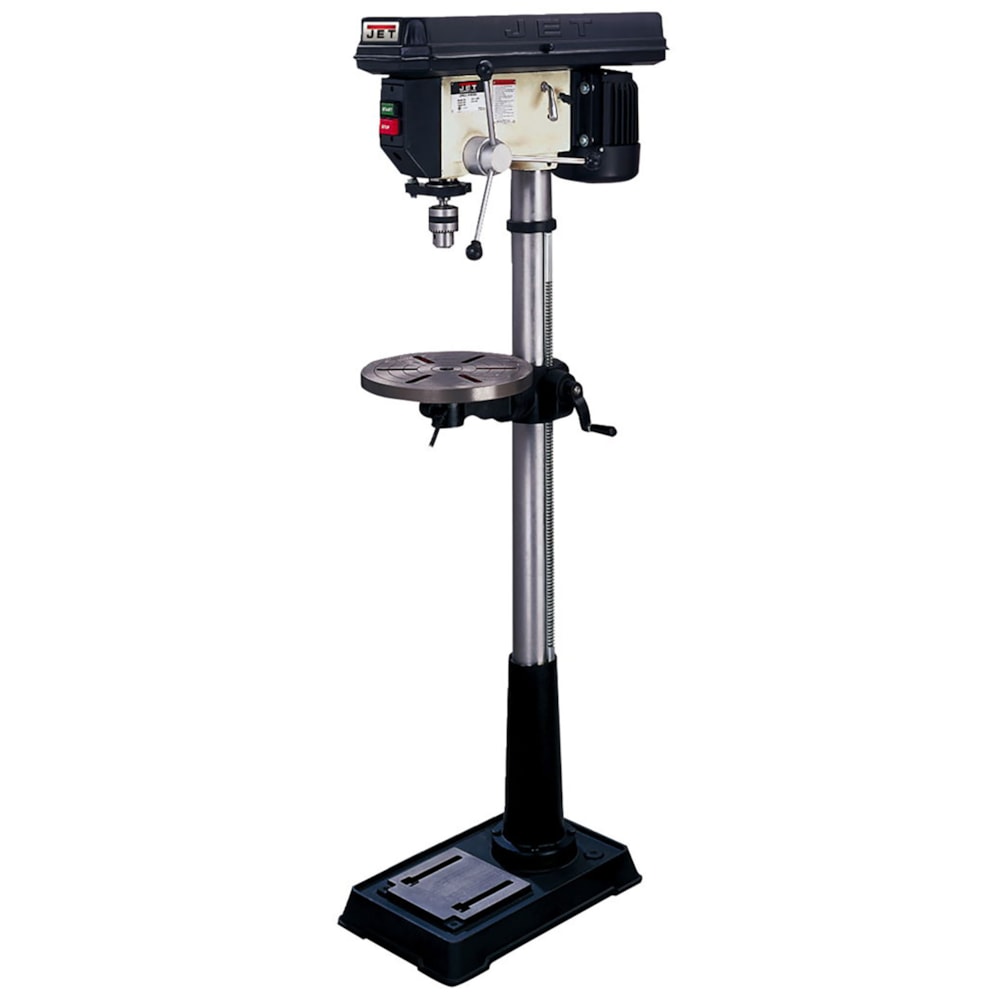

A true woodworker's drill press

• 16 speeds allow setting the best speed to the job
• Quick release crank operated worktable height adjustment rotates + or - 45° for versatility
• Hinged metal belt and pulley cover provide easy access to the quick adjustment motor mount for rapid spindle speed changes
• "X" pattern mounting grooves in table allow setting a fence when table is in reverse position
• Depth stop displays inch and mm, and has a quick set bolt for fast, accurate adjustments
• High-quality ball bearing spindle construction adds durability for long life
• Adjustable tension spindle return spring is ideal for repetitive drilling at the same depth
• Built-in worklight (bulb not included) provides additional visibility of your work
• 5-year limited manufacturer warranty
• Manufacturer model# 354169
• Style: Floorstanding Model
• Swing: 16 1/2"
• Spindle Travel: 4 3/8"
• Number of Spindle Speeds: 16
• Spindle Taper: MT2
• Spindle Speed Range :200 - 3630 RPM
• Max Spindle Distance to Table: 29 1/8"
• Table Size: 13 3/4" x 13 3/4"
• Table Tilt: 45° R & L
• Chuck Size: 5/8"
• Column Diameter: 3 1/8"
• Base Size: 11 1/8" x 19 5/8"
• Motor Power: 3/4 HP
• Motor Phase: 1 PH
• Motor Voltage: 115V / 230V
• Prewired Voltage: 115V
• Motor Amps: 9 / 4.5
