9.25" to 29" height

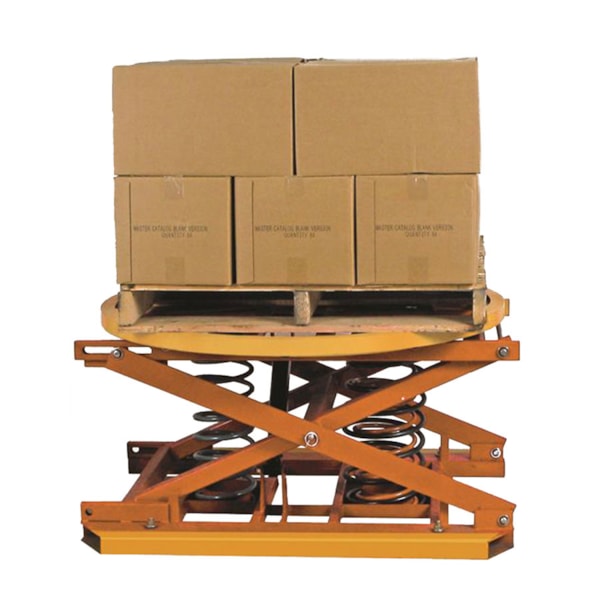

• Progressively lowers as pallet is loaded and raises as pallet is unloaded

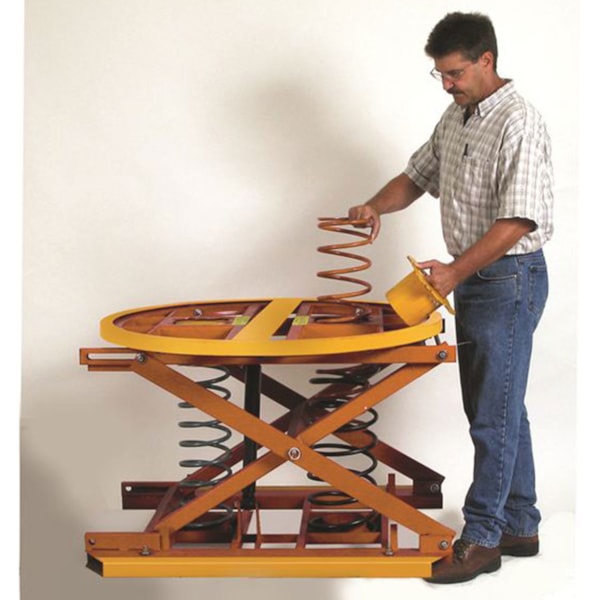

• 3 heavy-duty calibrated springs used in combination according to desired load range
• Bearing supported carousel for easy turning
• Built-in fork pockets for ease of transport
• Helps reduce fatigue and injury from bending and lifting
• Model: PL
• Capacity: 400 to 4500 lb.
• Width Fork Pocket: 5.75"
• Length Fork Pocket: 39"
• Load Height: 50"
• Load Depth: 50"
• Raised Height: 29"
• Lowered Height: 9.25"
• Carousel Diameter: 40.75"
• Rotating Ring Diameter: 43.5"
• Overall Width: 36"
• Compressed Overall Height: 9.25"
• Raised Overall Height: 29"
• Overall Depth: 45.5"
• Weight: 352 lb.
