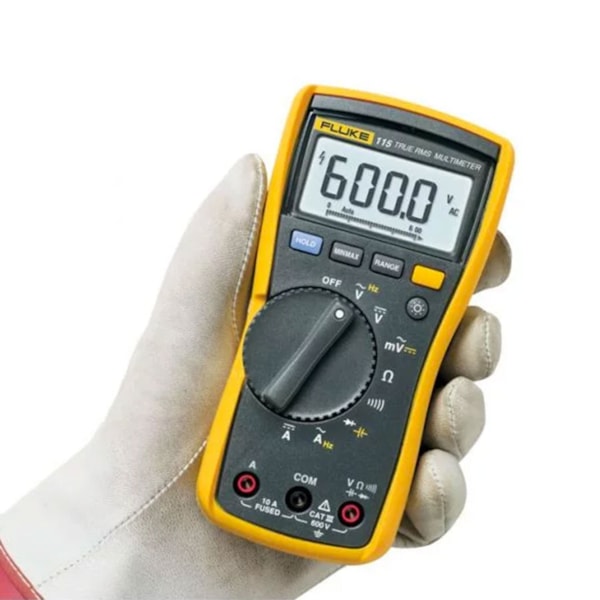

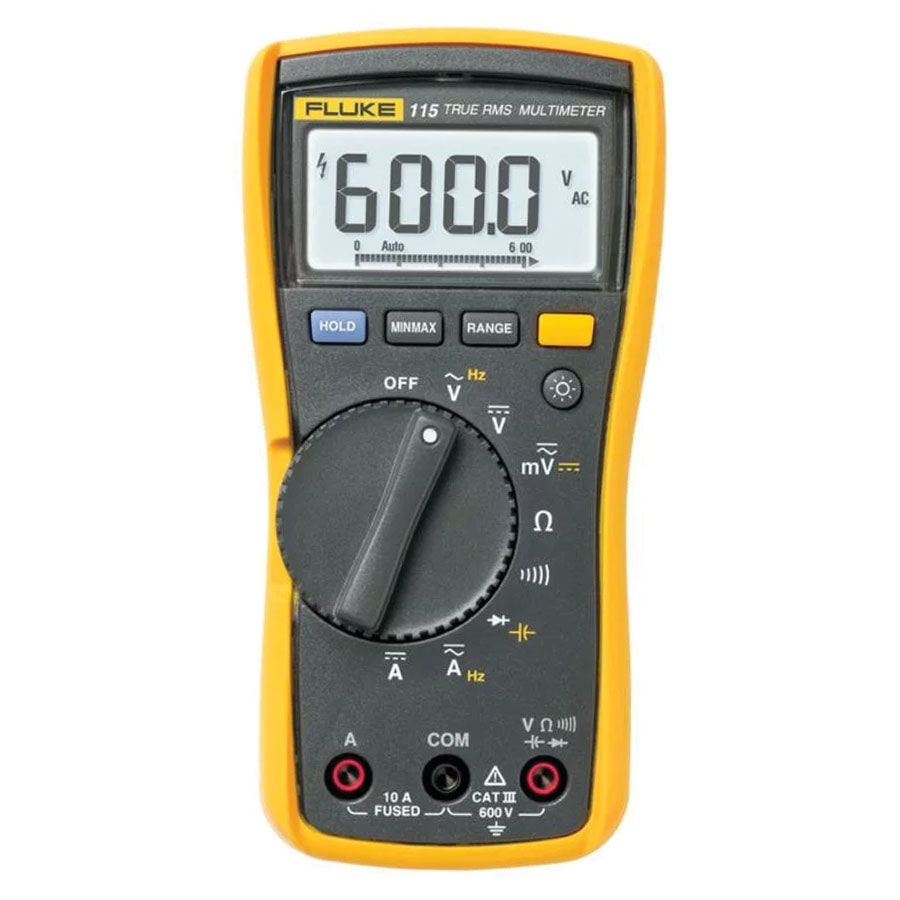

Compact, general purpose troubleshooting tool for field service technicians

• General purpose digital multimeter for electrical and electronic testing
• Ideal for quick verifications and field service
• Large white LED backlight for working in poorly lit areas
• Measures AC and DC voltage to 600V
• Measures AC and DC current to 10A, 20 A overload for 30-seconds max
• Simple, one-handed operation and compact design meet the needs of a wide variety of field service technicians
• Measures true RMS voltage and current with 6000 count resolution, and resistance, continuity, frequency, and capacitance for quick verifications
• Independently tested for safe use in CAT III 600V environments
• Provides min, max, and average with elapsed time to record signal fluctuations
• Comes with a holster with probe holders for easy storage
• 600 V maximum voltage between any terminal and earth ground
• Probes not included
• Surge Protection: 6 kV peak per IEC 61010–1 600 VCAT III, Pollution Degree 2
• Display: Digital, 6,000 counts, updates 4 per second
• Bar Graph: 33 segments, updates 32 per second
• Battery Type: 9-volt Alkaline, NEDA 1604A/ IEC 6LR61
• Battery Life: 400 hours typical, without backlight
• Weight: 19.4 oz.
• Measures: 6.57" x 3.31" x 1.82"
